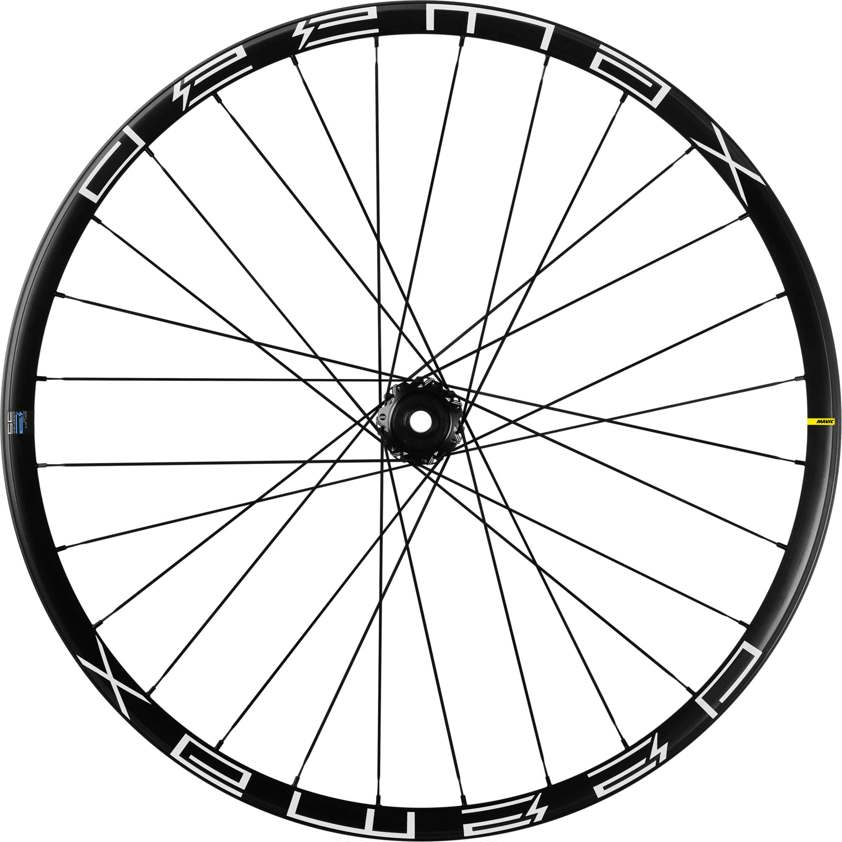

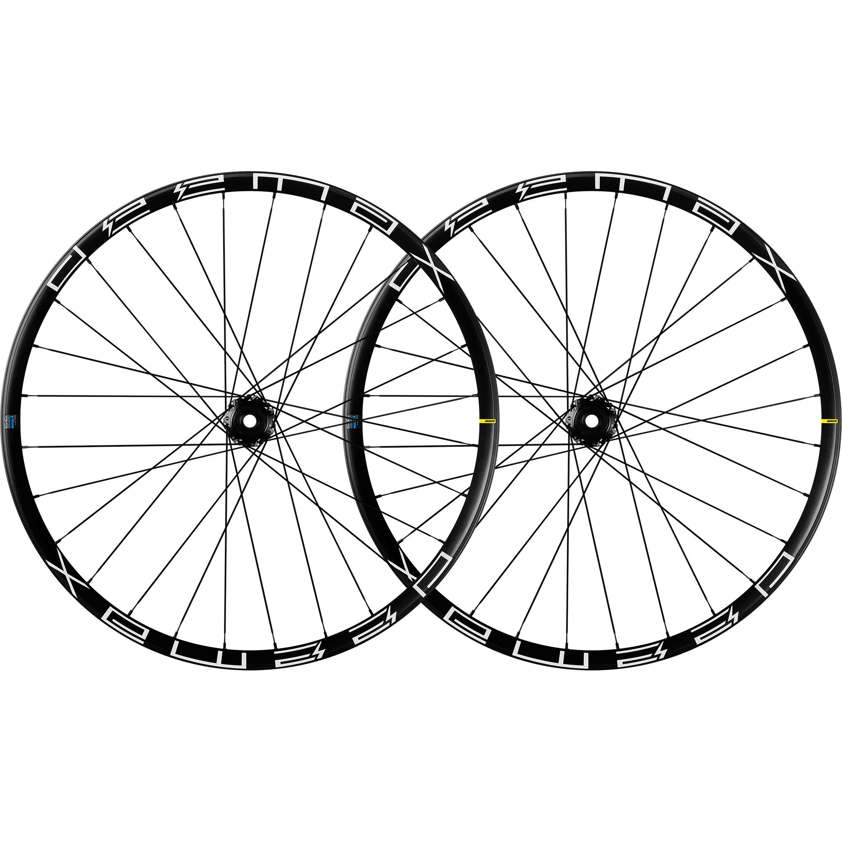

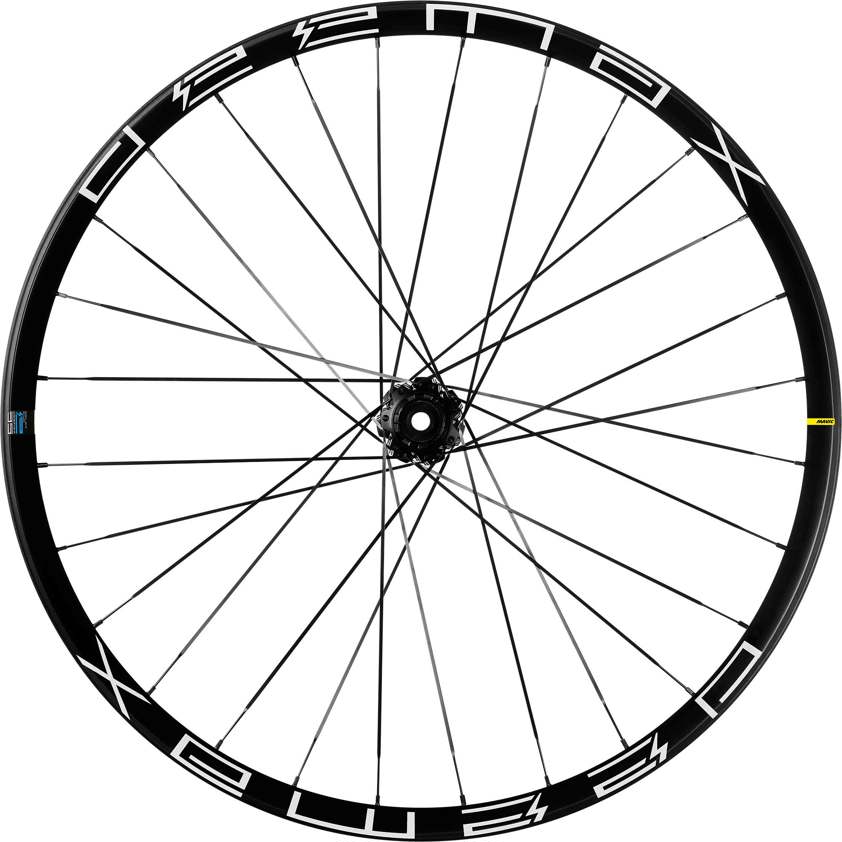

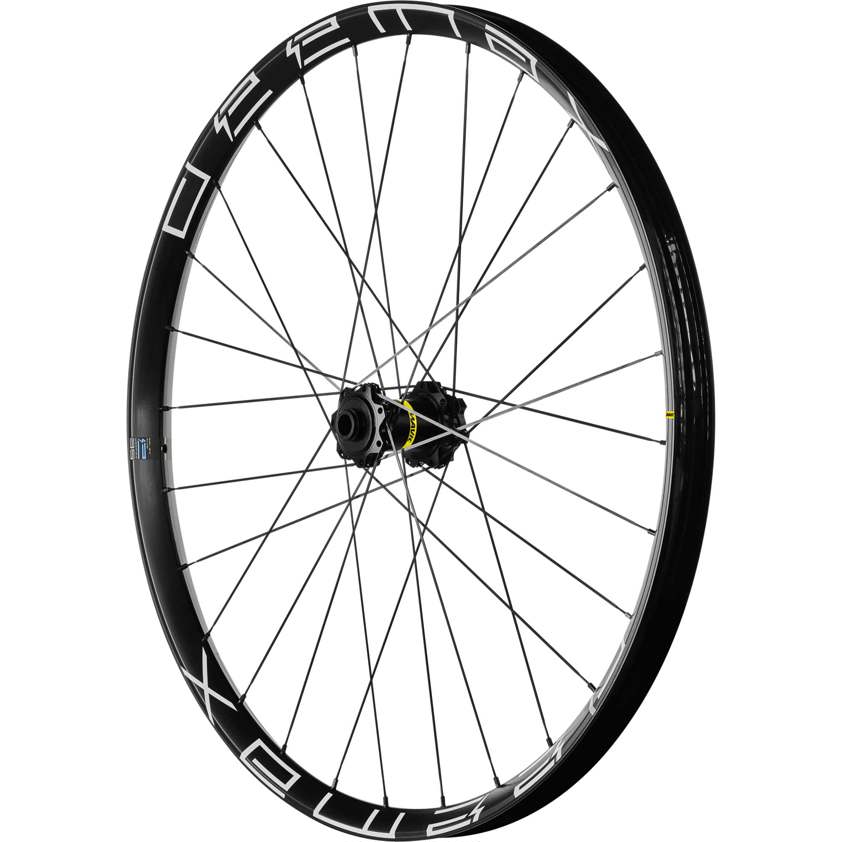

A 35mm E-bike specific rim that’s super strong, tubeless ready and with PFP technology. The rim is welded and laced with 28 double butted spokes on downhill inspired hubs. All the E-Deemax reliability and toughness within reach.
[](https://www.chickencyclekit.co.uk/mavicwarranty.php)
**Strong and durable**
* Welded rim with Pinch Flat Protection for :
* Less risk of flat
* A super strong rim profile
* A perfectly sealed rim profile
**E-Bike specific and reliable construction**
* 28 wide double butted spokes
* Super reliable ID360 double ratchet freewheel system

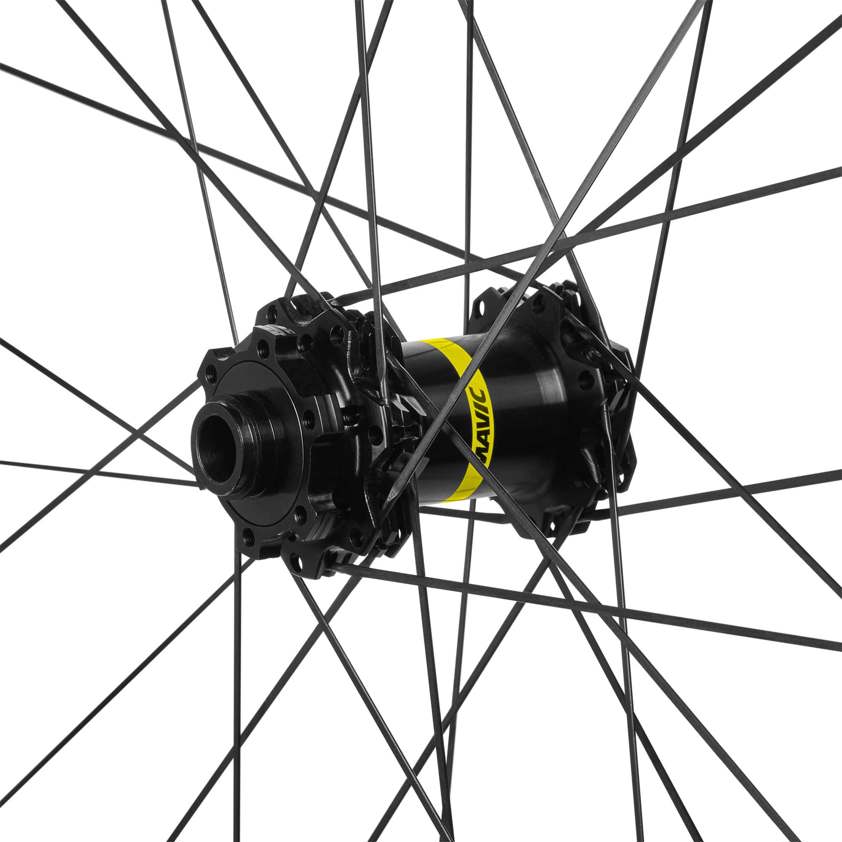

* Hubs inspired by downhill practises
**Tubeless ready technology**
* A tubeless rim profile with tubeless tape make it easy to ride tubeless tyres for more traction and less risk of flat
**Weight: 2260g**
**Understanding the different Mavic freehub body acronyms:**
* HG or M11 – Shimano HG Road 11/12x (other speeds with spacer)
* MS - Shimano Microspline
* XD - SRAM XD
* XD-R - SRAM XD-R
* ED11 - Campagnolo 9/12x
* N3W - Campagnolo 13x
___
**ADDITIONAL INFORMATION**
The name E-Deemax has become a reference for E-Bike riders, this new E-Deemax 30 lives up to its name with many of the same features and technologies as higher range model, but at a far more attainable price. One of the key factors is our Pinch Flat Protection technology, a rim design with a wider contact surface at the top of sidewall, which significantly reduces the risk of tyre cuts and punctures. The rim is welded for added reliability and features a 30mm internal width with a Tubeless Ready compatibility to allow you to run lower tyre pressure for better traction and control.
As all our E-Deemax wheelsets, this new option is lab and field validated for a max total weight of 180Kg.

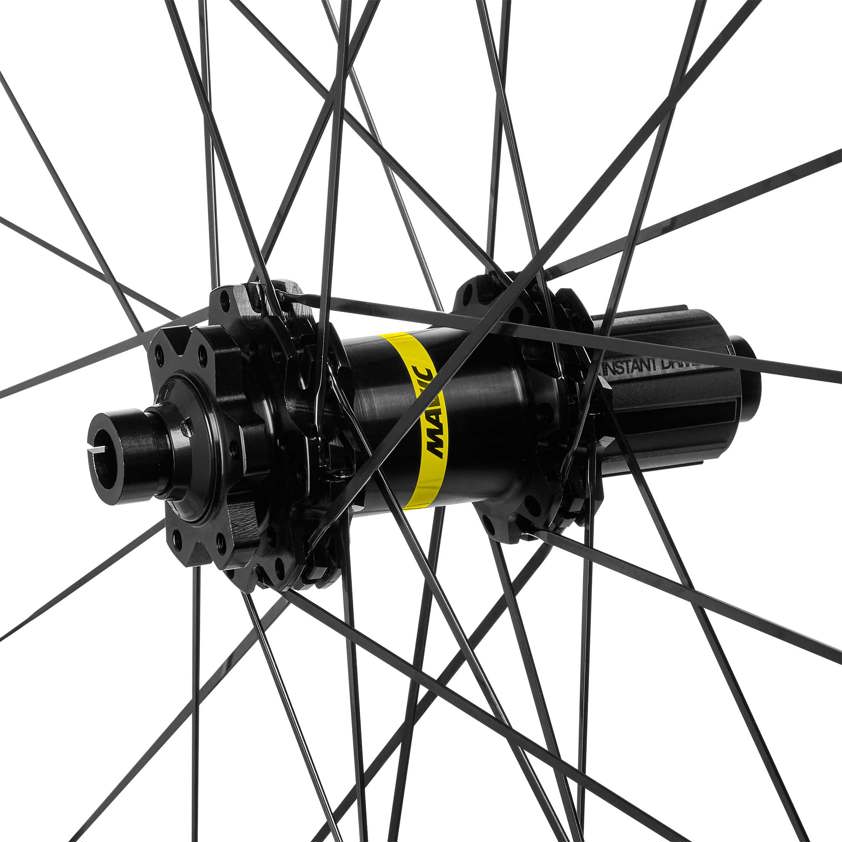

Our Instant Drive 360 freewheel with a double ratchet system equips the rear hub and provide fast engagement and top-level reliability.
The rear hub is compatible with Shimano HG9, Micro Spline and SRAM XD driver bodies. The E-Deemax 30 is available with 6-bolt or center lock brake rotors and is compatible with a 15x110 front axle and 12x148 rear. The wheel is delivered with valves, replacement spokes and accessories.
**Maxtal Aluminium Alloy**
Exclusive to Mavic. this specific aluminium alloy offers a higher strength to weight ratio than tradition 6106 alloy
**Instant Drive 360 technology**
Super light and efficient. The large contactless rubber seal provides low friction, while a wide array of end caps makes it super versatile.
**UST tubeless technology**
Traction and control. Universal Standard for Tubeless. Ready to ride tubeless system. The UST concept improves traction, control and comfort whilst reducing inertia and flats.
**SUP Welding technology**
Soude Usine Process, stronger and smoother joint. After bending, the rim joint is arc welded. The welded seam is then milled for a smooth finish.
**QRM Auto Bearing Preload Technology**
Qualite de Roulements Mavic Auto. Cartridge bearings double sealed with e3 internal clearance. Preload is automatically adjusted to guarantee a perfect spin with no play on the long run.
**Technical Specifications:**
* Profile depth: 22mm
* Inner width: 35mm
* Rear axle: 12x148mm
* Discipline: Downhill
* Spokes: Straight Pull, Flat.
* Rim Diameter: 27.5"
* Nipples: Steel ABS Black
* Rim material: Maxtal
* Tyre compatibility: UST Tubeless Ready Use with Mavic Tubeless Tape
* Maximum weight: 180kg including bike
* Braking system: Centre Lock
* Bearings: QRM automatic setting sealed cartridge
* ETRTO Size: 622x30TC
* Weight: 2260g
**What's in the Box?**
* Wheelset
* Speed sensor magnet with the rear wheel
* Multifunction adjustment wrench with the rear wheel
* Rim Tape mounted on wheek
* UST Tape mounted on wheel
* 2 Replacement spokes for each wheel
* Front axle adapter: 20x110 convertible to 15x110
**Intended Use**
* Minimum tyre size: width 52mm - pressure max. 2.95Bar/43PSI
* Maximum tyre size: width 76mm - pressure max. 2.45Bar/36PSI
* ASTM category 5 : gravity riding focused on the descent
