Specifications
Headset Specs
External wired headset, dia top 44mm bottom 56mm
Suspension Measurements
- Fork: 1.5T, 160-180mm travel single crown fork suitable, 170mm as suggest, Double crown fork, not suitable
- Shock: Trunnion shock only, eye to eye 205mm, bottom bushing as M8*30mm, 65mm travel as recommended for 165/172mm rear travel, 62.5mm travel for 160/165mm rear travel.
Seatpost Measurements
- Dia 31.6mm, insert depth S: 260mm, M:280mm,L:300mm ,XL: 325mm
- Recommended dropper travel: S:180mm, M&L: 210mm, XL: 240mm
- Dropper cable length: 1200mm
Drive System Specs
- Frame rear brake post mount 200mm directly
- Front brake mount depends on your fork
- Front brake cable 950mm
- Rear brake cable 1700mm
Drive System Specs

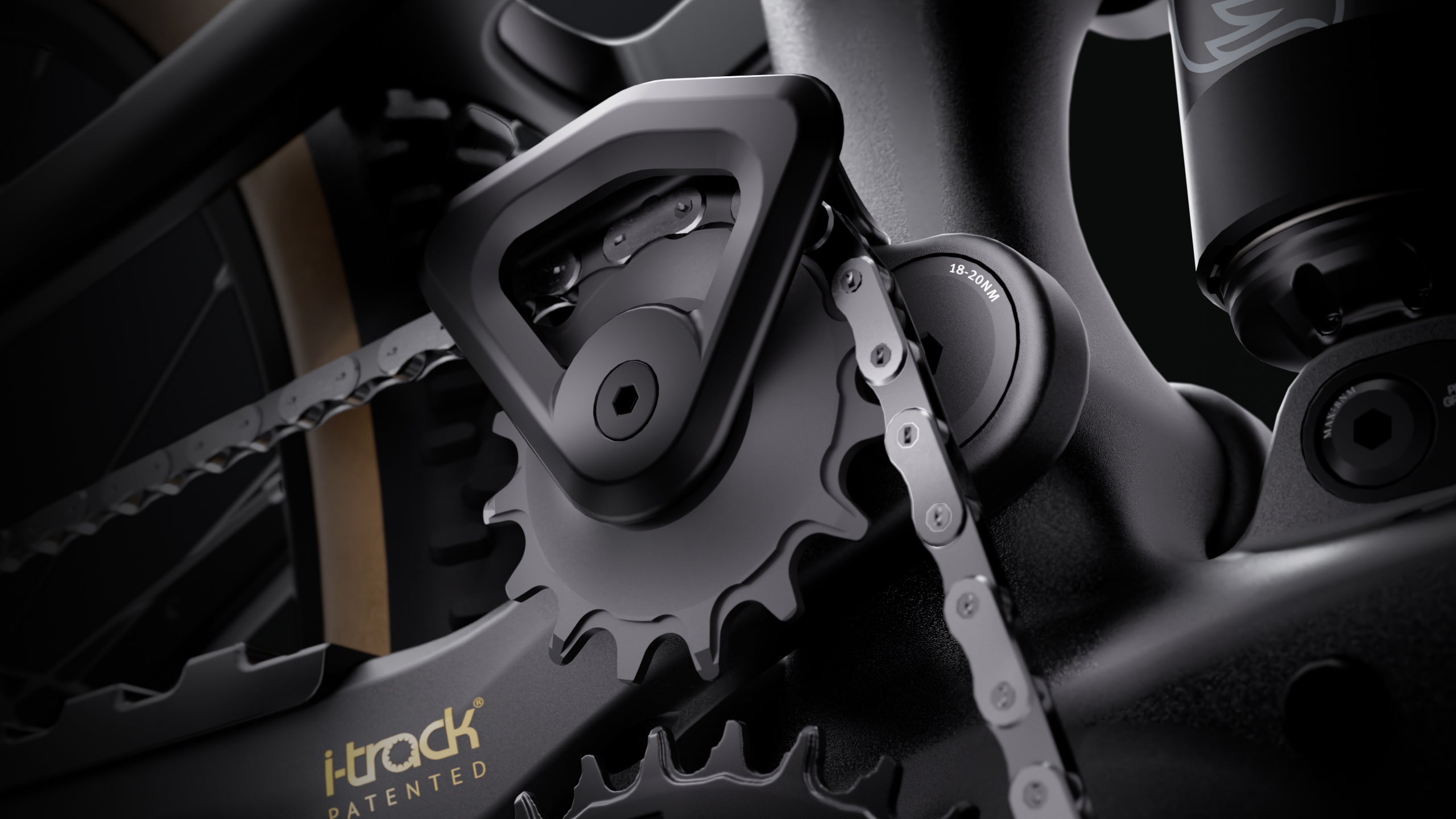

- Chainwheel: 104BCD, Max to 34T
- Crank: Length up to 165mm, min offset:25mm
- UDH derailleur suitable
1x shifting only - Shimano and SRAM compatible
- E-shift and manual shift compatible
- Manual shift cable length 2000mm
Wheel Set Compatibility
- Front hub: depends on the fork, normally 15x110mm
- Rear hub: 12x148 Boost
- Front rim: 29inch (700C)
- Rear rim:29inch(700C) and 27.5inch(650B) compatible
- Front tire: 29x2.5 recommended, max to 2.6
- Rear tire: 29x2.4/27.5x2.4 recommended, max to 2.6
